MG-08 Maxim Muzzle Spacer / Seal Kit, w/ (2) O-Rings *NEW* US Made

MG08 muzzle Spacer and seal Kit, w/ (2) O-Rings *NEW* US manufactured by ADCO

Sold Individually.

Great upgrade parts for your MAXIM MG08!
Manufactured in the USA by ADCO Firearms

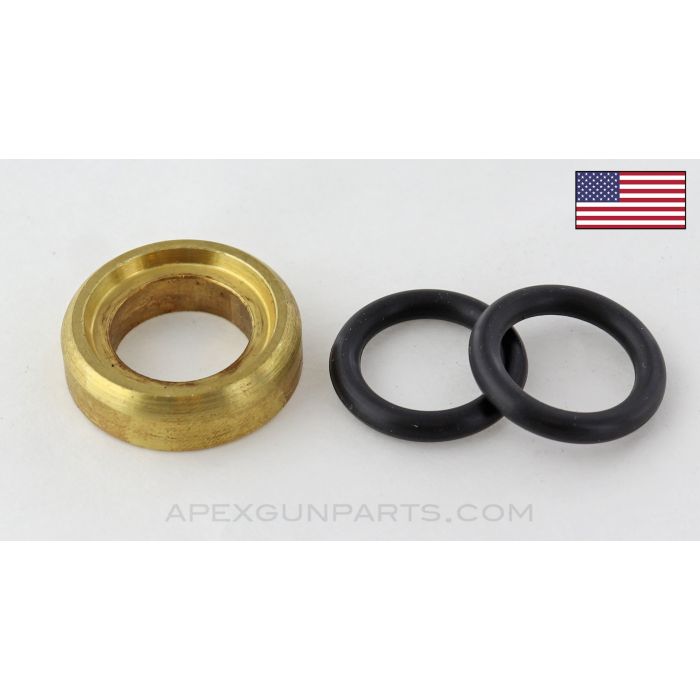

Includes (1) brass spacer and (2) Viton Fluoroelastomer O-Rings.
These O-rings are to the seal the water jacket and prevent leakage at the muzzle.
This replaces the original packing material.

Step 1. Get your MG08 and remove the feed block, fusee assembly and the lock. The barrel and recoil plates should move freely. Put all the moving parts in the forward position.

Step 2. Wrap a bunch of teflon tape around the threads of your muzzle nut. There needs to be enough tension that it takes effort to unscrew once installed.

Step 3. Grease the barrel where the o-ring makes contact and install the O-ring.

Step 4. Install the brass spacer with the flat end facing out.

Step 5. Install the muzzle device until you feel it get tight against the brass spacer.

Step 6. Pick up the Maxim and rest it on the grips with the muzzle pointed up.

Step 7. Put one hand at the bottom of the cocking lever, and with the other hand unscrew the muzzle nut until the barrel starts to slide out. At that point you are done. The muzzle nut doesn’t have to be tight against the waterjacket, it just needs enough tension from the teflon tape to stay in place. The o-ring seal with basically no tension will keep the water from leaking.
